Plates & Gaskets
Gasket Material: NBR, NBR-HT, HNBR, EPDM, HEPDM, Viton A, Viton G, CR;Plate Material: SS304, SS316,Titanium, Titanium palladium, Nickel (Ni), HASTELLOY alloy,Graphite;PLATELJ Plate usually have two type: high theta and low theta.The most frequently used materials are stainless steel (AISI 304, 316)
Gasket Material: NBR, NBR-HT, HNBR, EPDM, HEPDM, Viton A, Viton G, CR;
Plate Material: SS304, SS316,Titanium, Titanium palladium, Nickel (Ni), HASTELLOY alloy,Graphite;

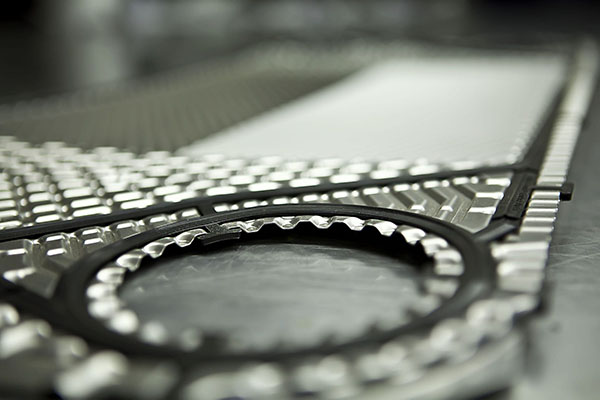

PLATE
LJ Plate usually have two type: high theta and low theta.The most frequently used materials are stainless steel (AISI 304, 316) and titanium with thicknesses of 0.5mm to 1 mm.

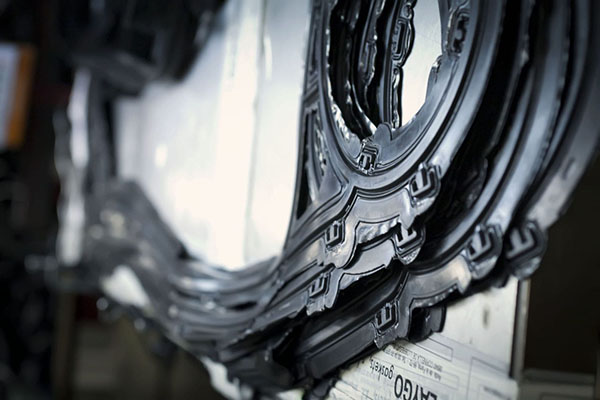

GASKET
LJ has all brands Gaskets. You can inquiry us at any time with model, material and quantity.
| Gasket Material | Temperature Range ( ℃) | Available Medium |
| NBR | -15 to 110 | Water, Oil, Acid etc |
| EPDM | -25 to 170 | Steam, Ammonia, Acid etc |
| NBR-HT | -15 to 120 | Mineral Oil, Thermal Oil |
| HNBR | -15 to 160 | High temperature mineral water, high temperature mineral oil |
| HEPDM | -25 to 180 | High temperature water |
| Viton/FKM | -5 to 220 | Acid,Glycol,Chloride |
| Plate Material | Available Medium |
| Hastelloy(C276) | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid etc |
| Titanium(Ti) | Sea water, salt water, salts etc |
| Nickel (Ni) | High temperature, high concentration caustic fluid etc |
| SMO254 | Dilute sulfuric acid, dilute salt, inorganic water solution etc |
| SS304 SS316L(AISI304,AISI316L) | Water, steam, lubricating oil etc |
